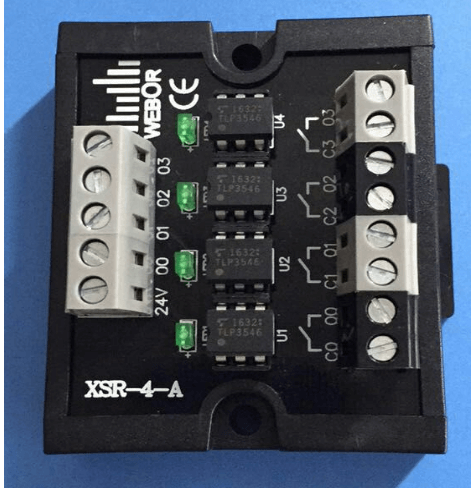

一  XSR fast electrical signal conversion module

XSR fast electrical signal conversion module can quickly convert the DC 5V --- 24V level control signal to the switch type contactless solid state relay conduction electrical signal, with the highest operating frequency of 50KHz and the fastest response speed of 20 μ s. The maximum load capacity of the impact belt is 1A, and the load capacity of the normal working current is 0.5A. It is widely used in situations requiring rapid electrical signal conversion or small power fast solenoid valve drive.

n  Purpose

t is used for control occasions requiring rapid electrical signal conversion, such as electronic special equipment dispensing coating equipment, printing equipment.

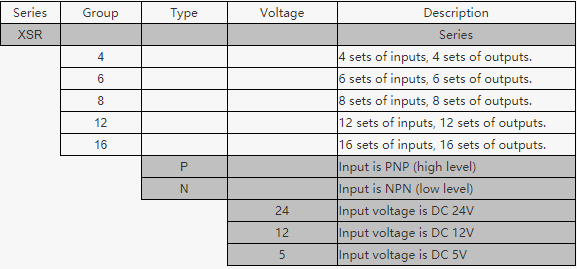

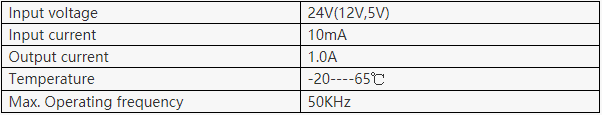

n Specifications

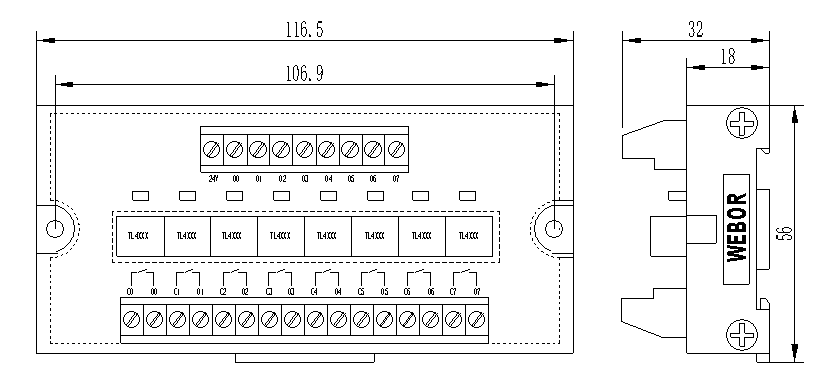

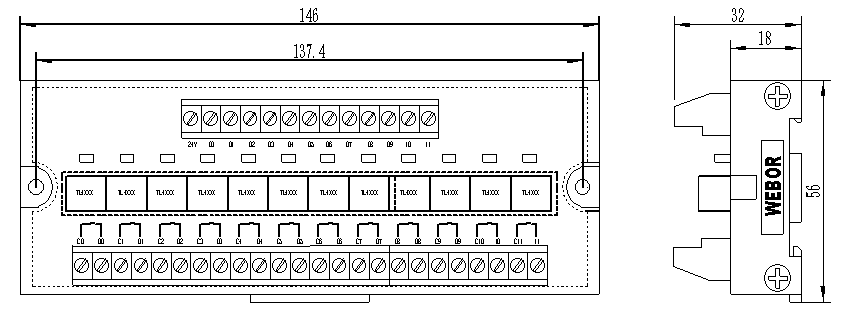

n Dimensions

u XSR-4

u XSR-6

u XSR-8

u XSR-12
